The Driver board can be used for 2200M or 630M to drive two IRFP250 Fet's in push-pull.
The output circuit is similar to W1VD except I use a pair of IRFP250 fets.

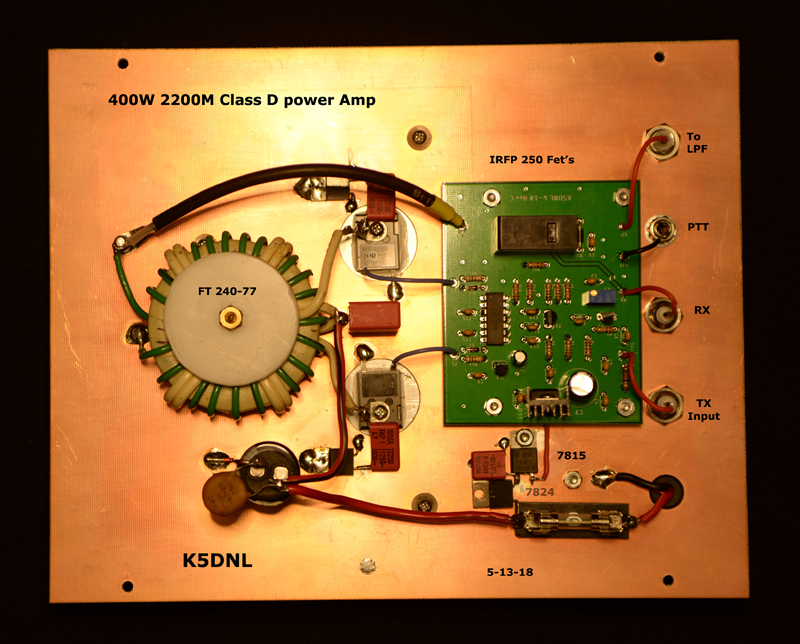

The Amp is built on a 8X10 single sided copper clad board.
