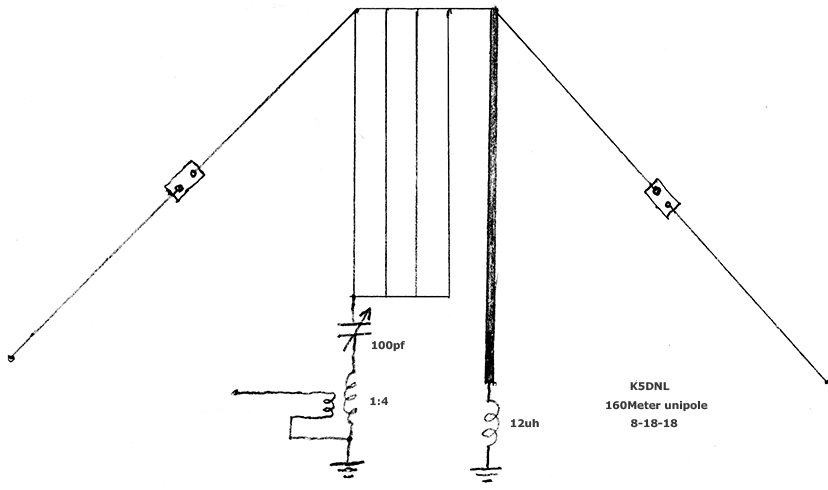

The antenna is 30ft X 4 in irrigation tubing with 4 drop wires and 4-20 ft top loading wires with only 8 ground radials 35 to 45 ft long. The base loading coil is 11 turns #12 on 3 inch PVC (12uh).

This is the 80M unipole with some C and L to get down to the 160M band.

Still working on this page

If you have questions , you can always send me an email.
